General Info

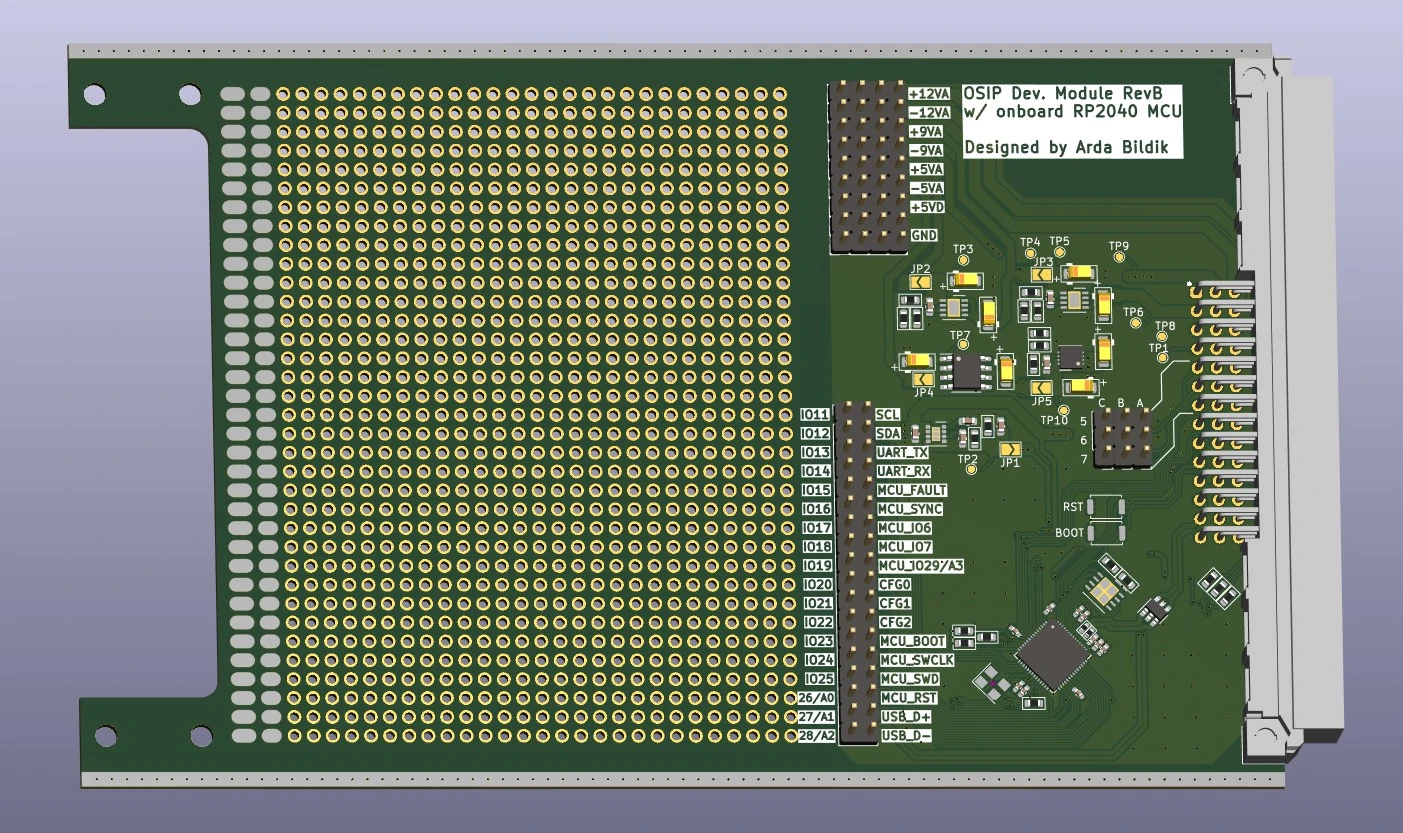

OSIP RP2040 Dev Module gives a playground for users to develope and prototype their own OSIP compatible modules themselfs. Dev Module provides a double-sided 76x89mm 0.1” prototyping area, a RP2040 MCU and provides ±12V, ±9V, ±5V and +3.3V rails for powering custom circuits made by the user.

Connectivity

Module uses DIN41612 compatible Type M 42+6 Pin Eurocard Connectors as all of the other modules. All 6 modular connector slots can be configured with different connectors like the ones that can be seen below.

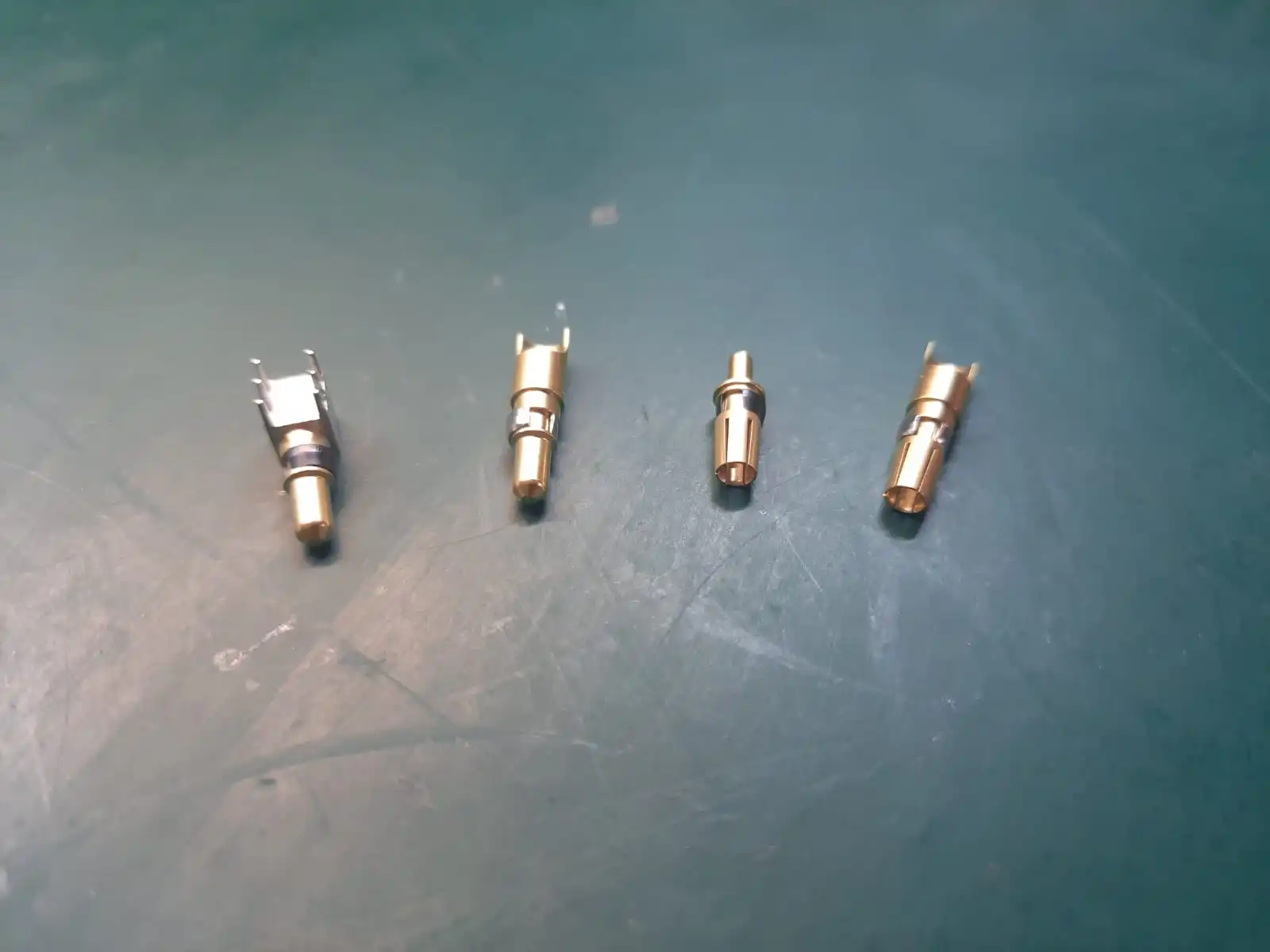

chassis 40A High Current Connectors (PCB and Solder Cup Types)

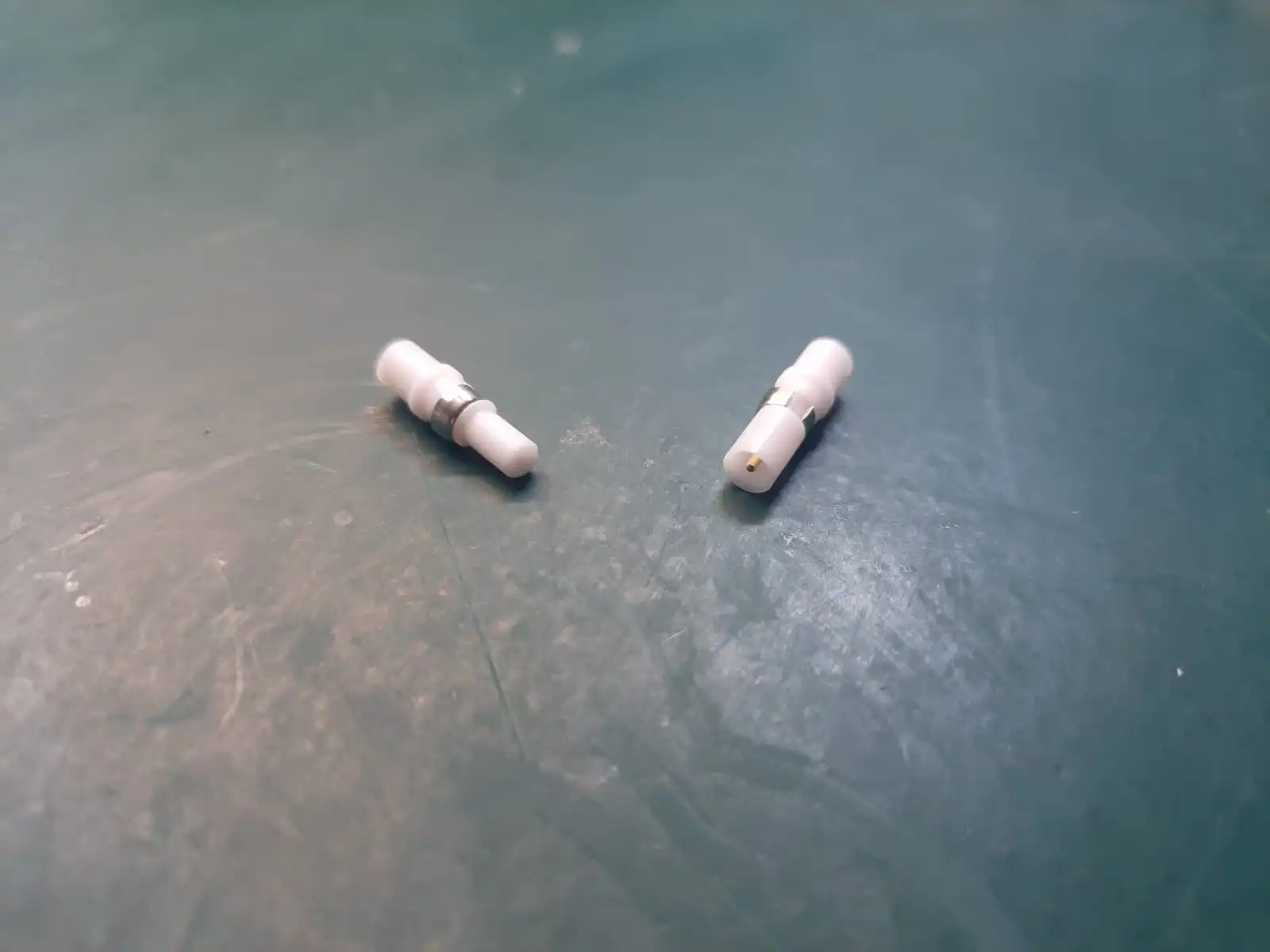

chassis 2.8kV High Voltage PTFE Connectors

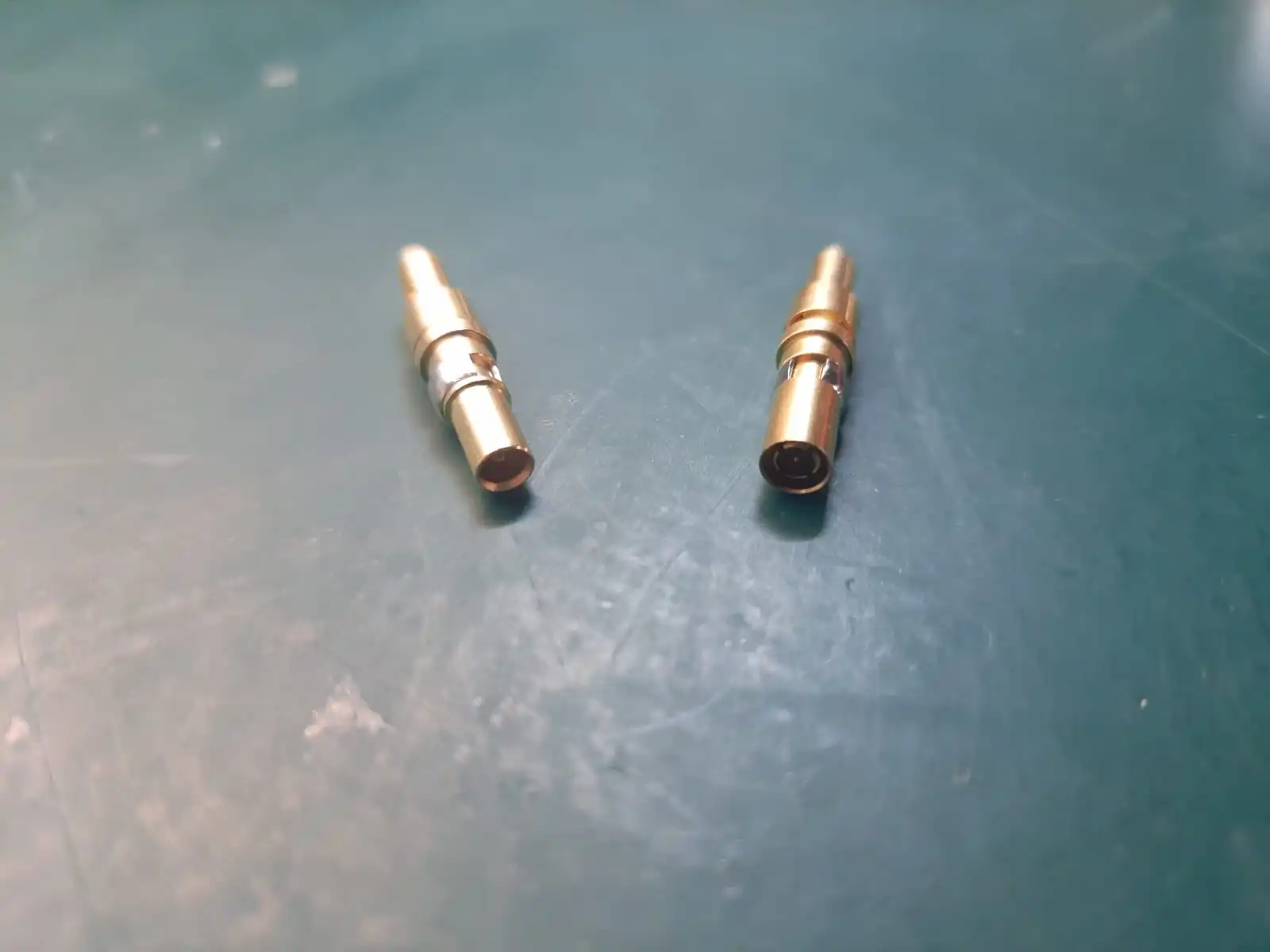

chassis 50Ω/75Ω High Frequency Coaxial RF Connectors

Latest pinout diagram for currently used Backplane can be found here in the OSIP Backplane.


Data and Control

For connectivity with the onboard RP2040 a 12Mbps USB2.0, I2C and UART interfaces are available alongside 5 GPIO pins with one of which having ADC capabilities. For any custom interfaces the user might want to use there are 9 available connections in the backplane connector that have been broken-out to 0.1” header pins on the Module PCB.
